Home>Dough Sheeters

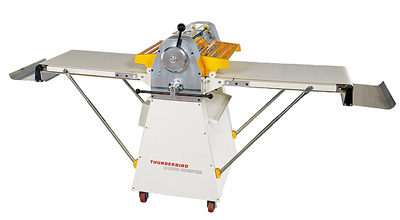

Dough Sheeter TBD-500

  • Dual side safety guard
  • Adjustable dough thickness
  • Proven synchro drive system
  • Catch trays under conveyor
  • Roller scraper
  • Conveyors can be drawn upward and hinged together
  • Little space required

Specifications

Type:

Floor

Width of conveyor belts
500mm
Working length

2100mm

Roller Length

520mm

Roller gap

40mm

Rated Power

3/4HP

Supply Voltage

220V.3 phase

Dimension (LXWXH)

2100*911*1100mm

Net weight

160 KGs(352lbs)

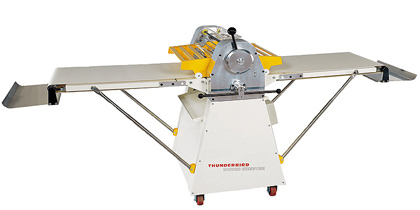

Dough Sheeter TBD-600

1 hp floor model reversible sheeter with 24" of working width and 48" working length conveyors. Linen belt conveyors driven at different speeds. Automatic speed change of conveyors with change of running direction. Equipped with safety guard. Easy to dismantle for cleaning, no tools required. Rollers and folding conveyors make for easy mobility and storage.

Specifications

Type:

Floor

Width of conveyor belts
600mm
Working length

2500mm

Roller Length

650mm

Roller gap

40mm

Rated Power

1HP

Supply Voltage

220V.3 phase

Dimension (LXWXH)

2500*1030*110mm

Net weight

200 KGs(400lbs)

THUNDERBIRD Bäckerei- und Nahrungsmittelmaschinen GmbH
Reichsstraße 5, D-14052 Berlin, Germany
Tel: ++49 30 365 50 40, Fax: ++49 30 365 50 47
