Home>Gear Driven Mixers

ARM-02 Mixer

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Standard Equipment:

  • 20-liters/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Equipment:

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 years

Specifications:

Motor:
3 speed
3/4 Hp
Electrical:
220V/380V, 50Hz
Speed Range:
Beater: 46-155
Hub: 106-357
Weight:
Net: 396lbs (102kg)
Ship: 467lbs (113kg)
Dimensions:
Width: 15'' (380mm)
Depth: 22'' (560mm)
Height: 32'' (815mm)

Shipping:
Width: 22'' (560mm)
Depth: 22'' (560mm)
Height: 38'' (965mm)

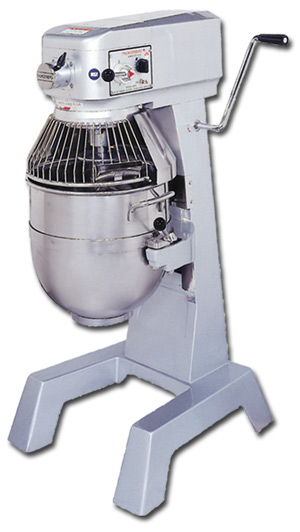

ARM-30 Mixer

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Standard Equipment:

  • 30-liters/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Equipment:

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 years

Specifications:

Motor:
3-speed
1HP continuous
20 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 40-150
Hub: 105-338
Weight:
Net: 396lbs (180kg)
Ship: 467lbs (212kg)
Dimensions:
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm)

Shipping:
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm)

ARM-40 Mixer

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Standard Equipment:

  • 40-liters/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Equipment:

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 years

Specifications:

Motor:
3-speed
1.5HP continuous
30 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 46-150
Hub: 105-338
Weight:
Net: 415lbs (189kg)
Ship: 490lbs (223kg)
Dimensions:
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm)

Shipping:
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm)

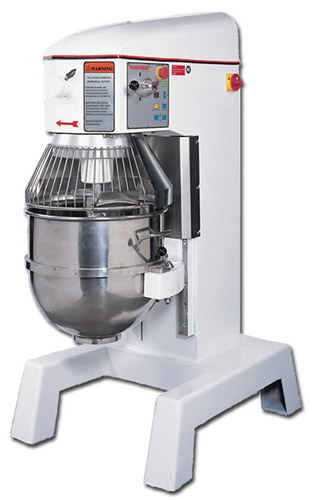

ARM-60 Mixer

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Standard Equipment:

  • 60-liters/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Equipment:

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 year

Specifications:

Motor:
6-speed (3 speed gear box with 2 speed motor)
4Hp continuous
50 amps
Electrical:
220/60/3 or 220/60/1
440v/60/3 or 440v/50/3
Speed Range:
Beater: 18-100
Hub: 38-228
Weight:
Net: 1018lbs (462kg)
Ship: 1180lbs (536kg)
Dimensions:
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 61.8'' (1569mm)

Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)

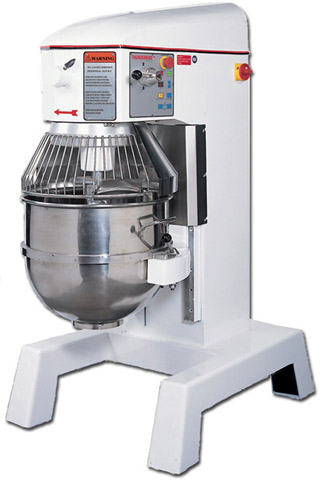

ARM-80 Mixer

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

*Same shape as ARM-60 but 80-liter mixer runs a 5Hp motor

Standard Equipment:

  • 80-liters/steel bowl.
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Optional Equipment:

  • #12 taper hub meat grinder (ARM-02A)
  • #12 taper hub Vegetable shredder with plate holder (ARM-02B)
  • Bowl dolly
  • Reduction set
  • EXTENDED WARRANTY up to 6 years

Specifications:

Motor:
6-Speed (3 speed gear box with two speed motor)
5Hp continuous
60 amps
Electrical:
220/60/3
440v/60/3 and 440v/50/3 available
Speed Range:
Beater: 18-100
Hub: 38-228
Weight:
Net: 1025lbs (466kg)
Ship: 1200lbs (538kg)
Dimensions:
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 66'' (1676mm)

Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)

THUNDERBIRD Bäckerei- und Nahrungsmittelmaschinen GmbH
Reichsstraße 5, D-14052 Berlin, Germany
Tel: ++49 30 365 50 40, Fax: ++49 30 365 50 47
