Spiral Mixer ASP 60
7Hp spiral mixer designed especially for heavy dough such as pizzas and bagels. This machine is designed with a long lasting stainless steel 110 qt bowl that can handle 132 lbs of dough and is equiped with a plastic cover to prevent flour flow out.
Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.
Specifications:
Capacity: |
Flour capacity (kg)/(lbs) |
40/88 |
Dough capacity (kg)/(lbs) |
60/132 |
Bowl capacity (litre) |
105 |
Dia. of bowl (mm) |
600 |
Height of bowl (mm) |
360 |
|
Motor: |
Horsepower |
7Hp / 1HP |
1st speed (kw) |
2.0 |
2nd speed (kw) |
4.0 |
Bowl(kw) |
0.6 |
|
Dimensions: |
Width (mm) |
655 |
Length (mm) |
1120 |
Height(mm) |
1318 |
|
Weight(kg/lb): |
380/838 |
|
|
|

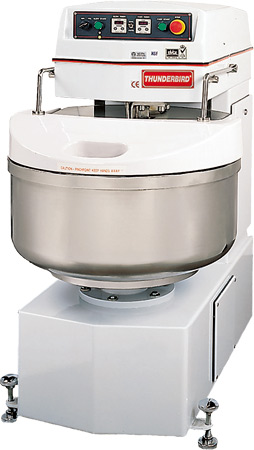

Spiral Mixer ASP 80
7.5Hp spiral mixer designed especially for heavy dough such as pizzas and bagels. This machine is designed with a long lasting stainless steel 135 qt bowl that can handle 176 lbs of dough and is equiped with a plastic cover to prevent flour flow out.
Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.
Specifications:
Capacity: |
Flour capacity (kg)/(lbs) |
50/110 |
Dough capacity (kg)/(lbs) |
80/176 |
Bowl capacity (litre) |
128 |
Dia. of bowl (mm) |
700 |
Height of bowl (mm) |
360 |
|
Motor: |
Horsepower |
7.5Hp / 1HP |
1st speed (kw) |
2.2 |
2nd speed (kw) |
4.2 |
Bowl(kw) |
0.6 |
|
Dimensions: |
Width (mm) |
725 |
Length (mm) |
1200 |
Height(mm) |
1390 |
|
Weight (kg/lb): |
395/868 |
|
|
|
Spiral Mixer ASP 120
8Hp spiral mixer designed especially for heavy dough such as pizzas and bagels. This machine is designed with a long lasting stainless steel 195 qt bowl that can handle 275 lbs of dough and is equiped with a plastic cover to prevent flour flow out.
Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.
Specifications:
Capacity: |
Flour capacity (kg)/(lbs) |
78/172 |
Dough capacity (kg)/(lbs) |
125/275 |
Bowl capacity (litre) |
185 |
Dia. of bowl (mm) |
800 |
Height of bowl (mm) |
400 |
|
Motor: |
Horsepower |
8Hp / 1HP |
1st speed (kw) |
2.6 |
2nd speed (kw) |
4.8 |
Bowl(kw) |
0.6 |
|
Dimensions: |
Width (mm) |
960 |
Length (mm) |
1620 |
Height(mm) |
1450 |
|
Weight (kg/lb): |
500/1100 |
|
|
|
Spiral Mixer ASP 160
12Hp spiral mixer designed especially for heavy dough such as pizzas and bagels. This machine is designed with a long lasting stainless steel 280 qt bowl that can handle 352 lbs of dough and is equiped with a plastic cover to prevent flour flow out.
Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.
Specifications:
Capacity: |
Flour capacity (kg)/(lbs) |
100/220 |
Dough capacity (kg)/(lbs) |
160/352 |
Bowl capacity (litre) |
266 |
Dia. of bowl (mm) |
900 |
Height of bowl (mm) |
420 |
|
Motor: |
Horsepower |
12Hp / 1.5HP |
1st speed (kw) |
4.8 |
2nd speed (kw) |
7.6 |
Bowl(kw) |
0.78 |
|
Dimensions: |
Width (mm) |
960 |
Length (mm) |
1620 |
Height(mm) |
1500 |
|
Weight (kg/lb): |
680/1498 |
|
 |
 |

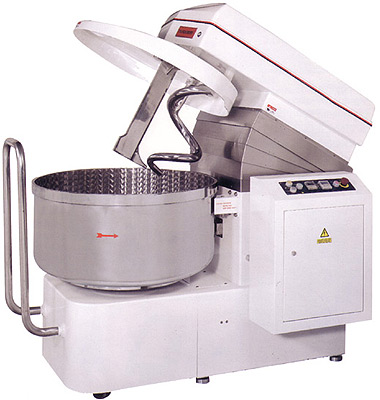

Spiral Mixer ASP 200
15Hp spiral mixer with removable bowl designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 318 qt bowl that can handle "440 lbs of dough with plastic cover to prevent flour flow out.
Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.
Capacity: |
Flour capacity (kg)/(lbs) |
128/282 |
Dough capacity (kg)/(lbs) |
200/440 |
Bowl capacity (litre) |
318 |
Dia. of bowl (mm) |
918 |
Height of bowl (mm) |
430 |
|
Motor: |
Horsepower |
15Hp / 1.5HP |
1st speed (kw) |
5.8 |
2nd speed (kw) |
9.8 |
Bowl(kw) |
0.78 |
|
Dimensions: |
Width (mm) |
1120 |
Length (mm) |
1760 |
Height(mm) |
1410 |
|
Weight (kg/lb): |
850/1870 |
|
